Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
  • Load image into Gallery viewer, Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
  • Load image into Gallery viewer, Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
  • Load image into Gallery viewer, Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant
  • Load image into Gallery viewer, Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant

Trailer Underbody Tipper Kit - 6 Stage 1005mm Stroke includes 12v Powerpack and Pendant

Regular price
$1,895.00
Sale price
$1,895.00
Regular price
$1,995.00
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

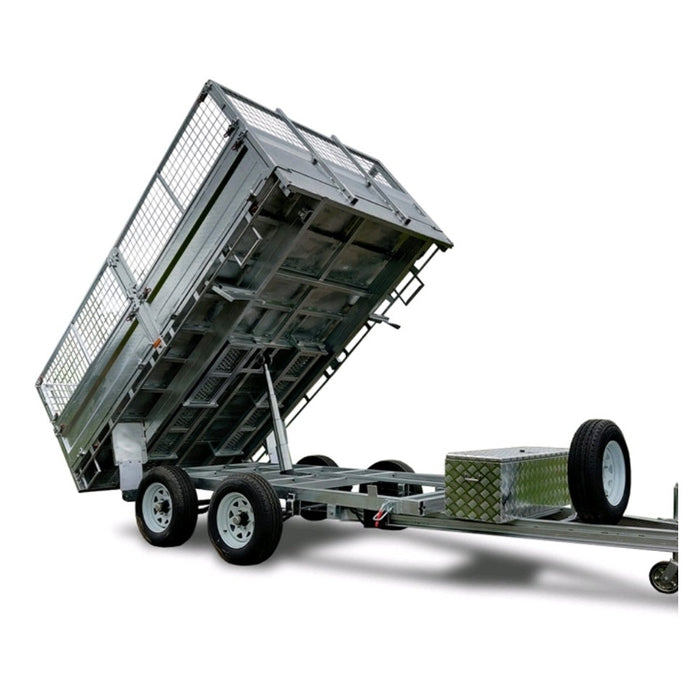

Trailer Underbody Tipping Kit

Since 1960 Di Natale Burtelli have been manufacturing industry leading telescopic cylinders, in fact Di Natale produce OVER 65,000 telescopic cylinders units annually.

Di Natale are one of the few worldwide companies that use the treatment of salt bath nitriding, called TENIFER within its production process. This ensures a constant performance at the sliding edge of the extensions which results in greater resistance to wear and fatigue.



This Underbody Trailer Tipping kit comes complete with:

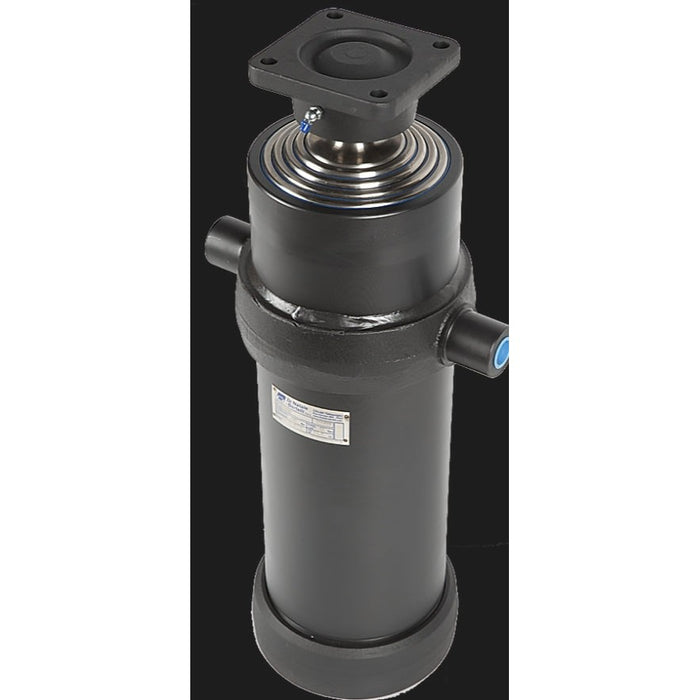

  • High quality Di Natale Bertelli tipping cylinder - see hoist specs below
  • 12v DC Hydro-Pack Hydraulic Power Pack including Pendant Controller

Underbody Hoist Specifications: 6003S

6 stage 1005mm stroke

Closed Height 355mm - includes 20mm Pullout

Ideal Pivot Length 1190mm

124mm Diameter

Weight 26kgs

Oil Volume 4.5lts

TIPPING CAPACITY:  Nom:  4tMax:  6.5t  @ 170 Bar

 *Hose Burt Valve available upon request*

****SHIPPING AND DELIVERY INFORMATION****

Due to the weight and size of this item, a forklift is required for unloading, therefore, freight will be calcualted and INVOICED  SEPERATELY - this is due to the item may have to be sent to your nearest depot for collection.
