Available in 3/8"- 1-1/2"
Connect under pressure Male

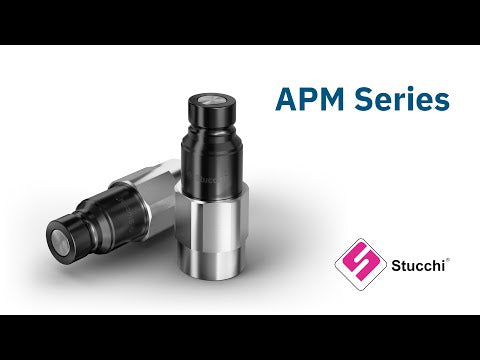

APM male flat face coupling series is the Stucchi solution for the manual connection with residual pressure in the circuit, without fluid loss.
The Stucchi APM Series Flat Face Coupling is a male coupling that comes in different size and thread combinations. Click here for an overview of the specifications to find out which version matches your requirements best.
Can't find the right specs in the sheet? Contact us today for a personalised quote.
Benefits:
- Ability to connect under pressure
- Minimal fluid loss during disconnection, reducing fluid loss to the environment
- Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
- Locking mechanism
- The modular design allows flexibility with a wide range of configurations
Specifications:
- M=Male
- Interchange: ISO 16028
- Valving style: Flat Face
- Connection Under Pressure: Allowed
- Material / Treatment: High strength carbon steel
- Connection system: Push
- Sealing: Nitrile NBR
- Available sizes: From 3/8” to 1-1/2”
- Operating pressure: Up to 350 bar
- Locking mechanism: Locking ball, safety lock
- Temperature: -20°C / +100°C
- Flow rate: Up to 750 l/min
- Available threads: BSP, SAE
