IRS Series - Push Pull Couplings

Available in 1/2"

IRS Series Push Pull

The IRS coupling series offers push-pull capability for 1/2” size ISO A connections. The sleeve is double acting and features circlip grooves for bulkhead mounting. They are available in poppet, connect under pressure poppet and ball check styles. Compatible Parker 4200, Faster PS/PV, R81-P.

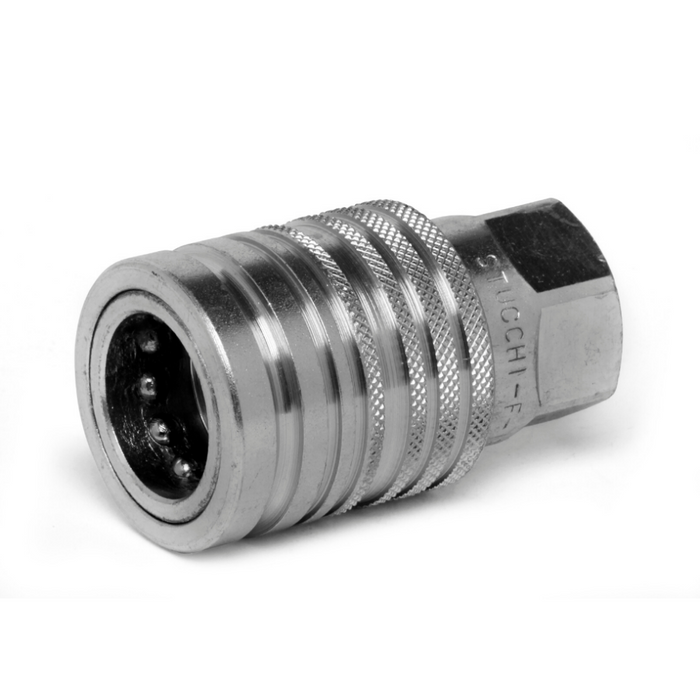

The Stucchi IRS Coupling on our website comes in one size (1/2") and three Female versions: IRS12A BSP, IRS12VA BSP and IRS12VAP BSP. If you require another size, please send us a message and we will get you a quote.

Click here for an overview of the specifications to find out which version matches your requirements best.

Benefits:

• Ball valves in hardened steel provide a good wearing resistance
• Compact slim design
• Simple to use
• Push-pull feature prevents hose damage

 Specifications:

• Interchange: ISO 7241-1 series “A” (size 1/2" only)
• Valving style: Poppet
• Connection Under Pressure: Allowed
• Material / Treatment: Carbon steel, Cr3
• Connection system: Single acting sleeve
• Sealing: Nitrile NBR
• Available sizes: 1/2"
• Operating pressure: Up to 350 bar
• Locking mechanism: Locking ball
• Temperature: -20°C / +100°C
• Flow rate: Up to 145 l/min
• Available threads: BSP
