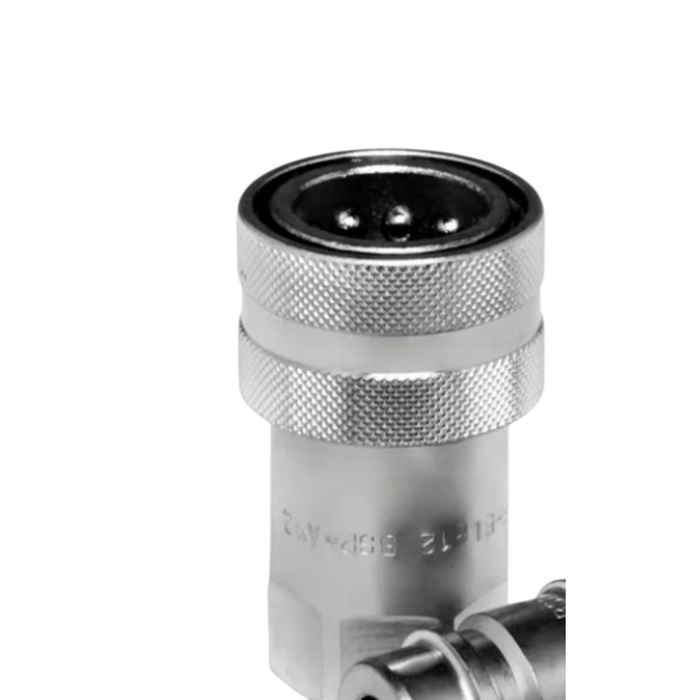

BIR PC Series - Connect Under Pressure

Original price $0.00 - Original price $20.00
Original price $0.00
$40.00
$20.00 - $40.00
Current price $40.00
Pick SKU - Thread Size::: F-BIR12PC BSP - 1/2"

Available in 1/2"

Connect Under Pressure

The BIR PC Series is suitable for "Open Centre" and "Closed Centre" hydraulic systems. The BIR PC comes in two different models, click here for an overview of the specifications to find out which version matches your requirements best.

Can't find the right specs in the sheet? Contact us today for a personalised quote.

Benefits:

  • Features Interchanges with ISO 7241-1 series A
  • Easy to couple or uncouple
  • Connectable in the presence of high internal static pressure.

 Specifications:

  • Interchange: ISO 7241 A
  • Valving style: Poppet
  • Connection Under Pressure: Allowed
  • Material / Treatment: Carbon steel, Cr3
  • Connection system: Single acting sleeve
  • Sealing: Nitrile NBR
  • Available sizes: 1/2"
  • Operating pressure: Up to 350 bar
  • Locking mechanism: Locking ball
  • Temperature: -20°C / +100°C
  • Flow rate: Up to 1000 l/min
  • Available threads: BSP
