A_HD Connect Under Pressure Female

Available in 3/8"- 1/2"

Connect under pressure female

The A_HD Series is the Stucchi solution for the connection problem in the presence of internal residual pressure on the female side.

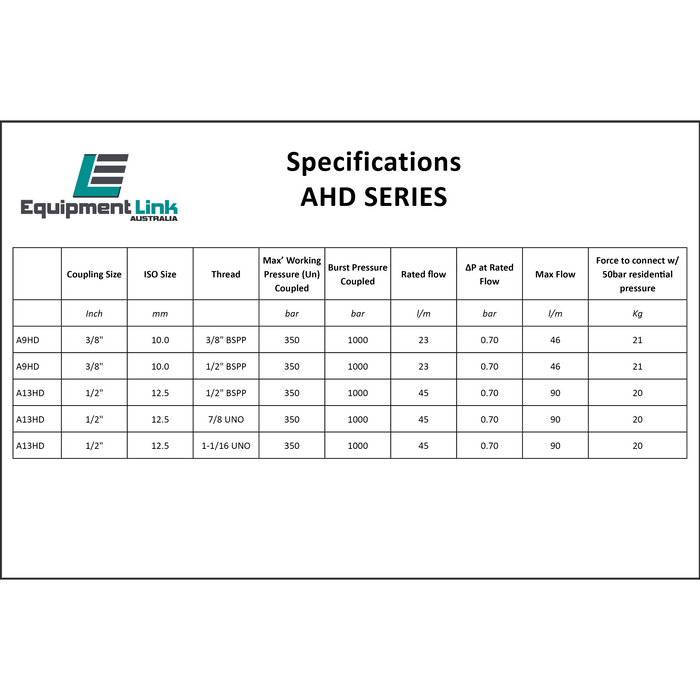

The Stucchi A HD Series Flat Face Coupling is a female coupling that comes in different size and thread combinations. Click here for an overview of the specifications to find out which version matches your requirements best.

BULK BUYS AVAILABLE

Benefits:

• Connection is allowed with residual pressure of the coupling, with male to drain
• Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
• Good resistance at impulse pressures
• Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
• Minimal fluid loss during disconnection, reducing fluid loss to the environment
• Safe and simple to use

 Specifications:

• F=Female
• Interchange: ISO 16028
• Valving style: Flat Face
• Connection Under Pressure: Allowed
• Material / Treatment: High strength carbon steel
• Connection system: Push
• Sealing: Nitrile NBR
• Available sizes: From 3/8” to 1/2”
• Operating pressure: Up to 350 bar
• Locking mechanism: Locking ball, safety lock
• Temperature: -15°C / +150°C
• Flow rate: Up to 90 l/min
• Available threads: METRIC & SAE
