3 Way Ball Valve 1-1/4" > 2" Options

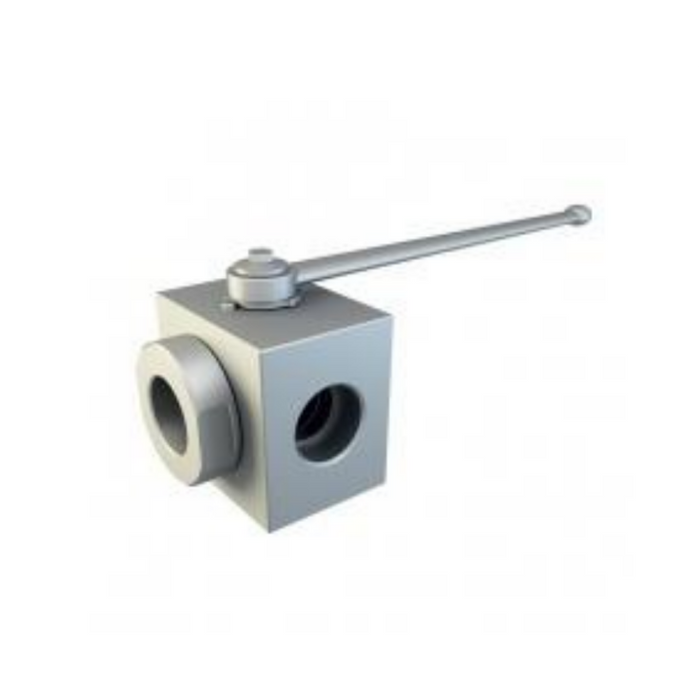

3 Way Ball Valve

Available in 1-1/4" - 2"

The GB3 series offers full flow performance for sizes 1-1/4” to 2”. Available in L and T port configurations.

Looking for a smaller thread? Click here to explore the Gemels GE3 Series.

The ball valves shown on our website are only a fraction of the range available. Please Contact us if you have applications for other valve configurations.

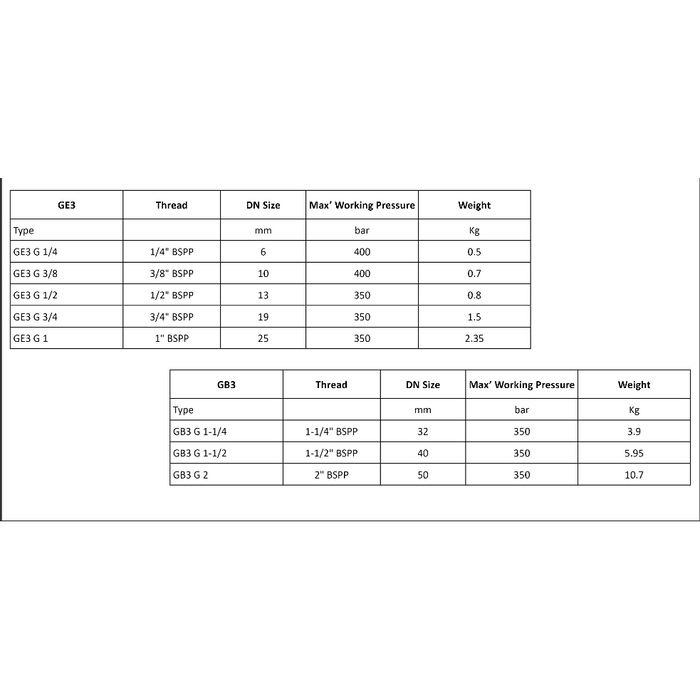

The Gemels GB3 Ball Valve comes in different thread/body sizes. Click here for an overview of the specifications to find out which version matches your requirements best.

Benefits:

• Body supplied drilled for easy mounting

 Specifications:

• Type: Ball - 3 Way
• Operation: Lever

• Material / Treatment: High strength carbon steel
• Number of ports: 3
• Port: PSB
• Available sizes: From 1-1/4" to 2”

• Operating pressure: Up to 350 bar for all sizes
• Temperature: -20°C / +10°C
